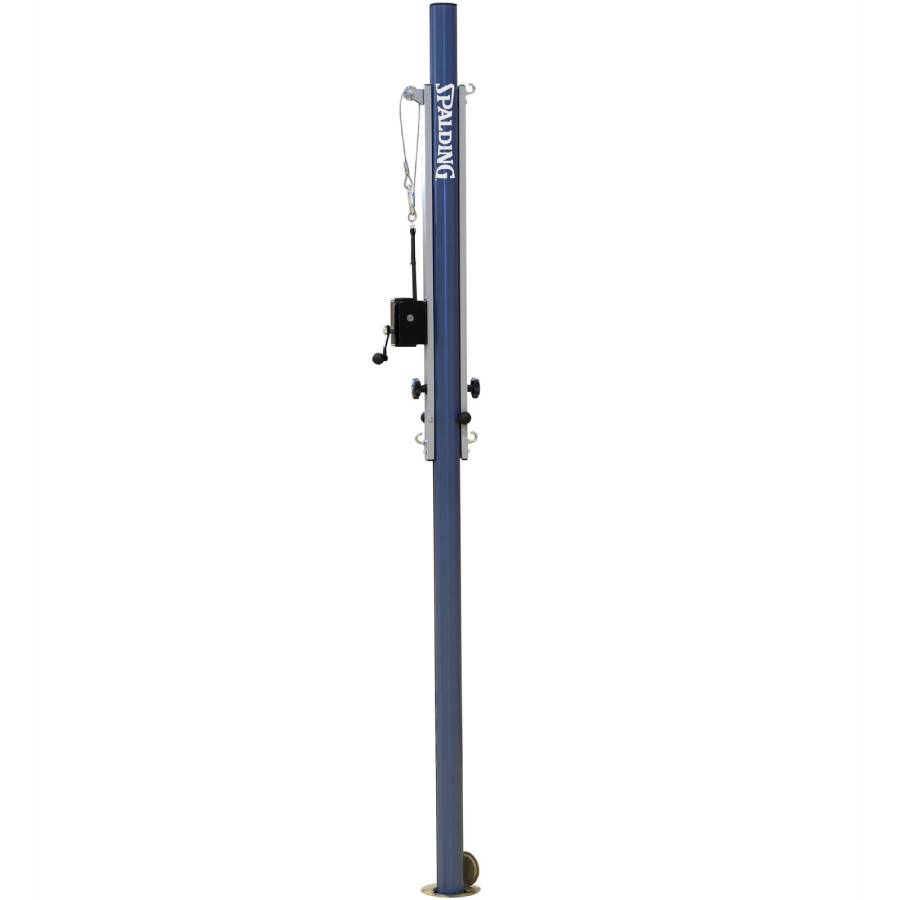

Spalding One Court Slide Multi Sport Complete System

Spalding One Court Slide Multi Sport Complete System

SKU:MA23699

Regular price $3,129.99
Regular price Sale price $3,129.99
Sale Sold out
Shipping calculated at checkout.

Spalding Slide Multi Sport Net System is one of the easiest to use and most versitile multi sport net systems on the market.

GENERAL DIMENSIONS: Spalding's Slide volleyball uprights Are 3.0" (76mm) diameter extruded uprights and are marked For men's, women's, junior high, elementary, badminton, and tennis regulation net height. The adjustments are continuous; So fine adjustments can be made to ensure correct net height for any situation.

CONSTRUCTION:

Uprights: Each upright shall be manufactured from extruded high strength aluminum tubing with A 3.010" (76mm) O.D. and structural internal geometry for added strength. Each upright shall be 107" (2718mm) long and shall have a baked navy powder coated finish. Each upright is clearly Marked at men’s, women’s, junior high, elementary, and tennis heights. A rubber foot shall be Attached to the bottom of the upright to prevent floor damage when the upright is set on the floor. A rubber foot shall also be attached to the top of the pole to keep the adjustment slider in the Channel.

Adjustment Sliders: Adjustment sliders shall be constructed of ¾” (19mm) x 1-1/2” (38mm) Aluminum tubing with 1/8" (3.175mm) wall thickness. Adjustment sleeves shall be finished with a Baked silver powder coat. Adjustment sleeves shall slide in the channel of the upright and shall be Fixed in place by a spin down handle. One adjustment sleeve shall have a winch attached and a Pulley at the top of the sleeve. The opposite sleeve shall have a j-hooks to attach the net top and Bottom. Each sleeve has a handle to assist in height adjustments.

Winch: The net shall be tensioned by way of a worm gear winch. The winch shall have a 20:1 Gear ratio, a heavy-duty steel frame and a custom-molded plastic cover. The winch shall attach to The upright that has the pulley and shall have a nylon leader strap and steel cable to attach to the Net.

Features:

  • Lightweight and easy to set up
  • Height strength upright made of 3" (76mm) O.D. extruded aluminum
  • Navy blue powder coated upright with silver powder coated sliders
  • Easy adjustment regardless of competitive height
  • Use at all levels of volleyball, tennis and badminton
  • Nylon leader strap allows for safety and easy net attachment
  • Requires 3" floor sleeves - sold separately
  • Warranty: poles and pistons, five-year; parts and winch, one-year

Information Regarding Padding Only: WARNING: This product contains chemicals known to the state of California to cause cancer, birth defects, and other reproductive harm.
